It is used in next-generation lithium-ion battery electrolytes, separators, CO2 sensors, next-generation capacitors, and lithium-ion recovery technology in seawater.
Product Introduction
It is a solid electrolyte material with high lithium-ion conductivity. Since it is an oxide-based solid electrolyte, it may be treated in the atmosphere and exhibits a high level of safety. With excellent material properties, the LICGC has potential to resolve problems with the environmental performance of products. Its applications include being used as electrolyte in next-generation lithium-ion batteries, separators, CO2 sensors, next-generation capacitors, technology for recovering lithium ions from seawater and other electrochemical devices.
Feature
-
01Not Soluble in Water
-
02Nonflammable
-
03Impermeable to Air
LICGC™SP-01 Properties
| Ionic Conductivity | 3×10-4Scm-1(25℃) |
|---|---|
| Chemical Properties | RW(P)JOGIS1 (Water resistance) |
| RA(P)JOGIS1 (Acid resistance) | |
| Fully Stable in Air | |
| Mechanical Properties | Bulk Density 2.72g/cm3 Piercing breaking strength ≈4N (measurement device Digital Force Gauge SHINPO FGS-20TV Terminal R3.0 purpose-built nut,testing device cooling speed 25mm/min.) |

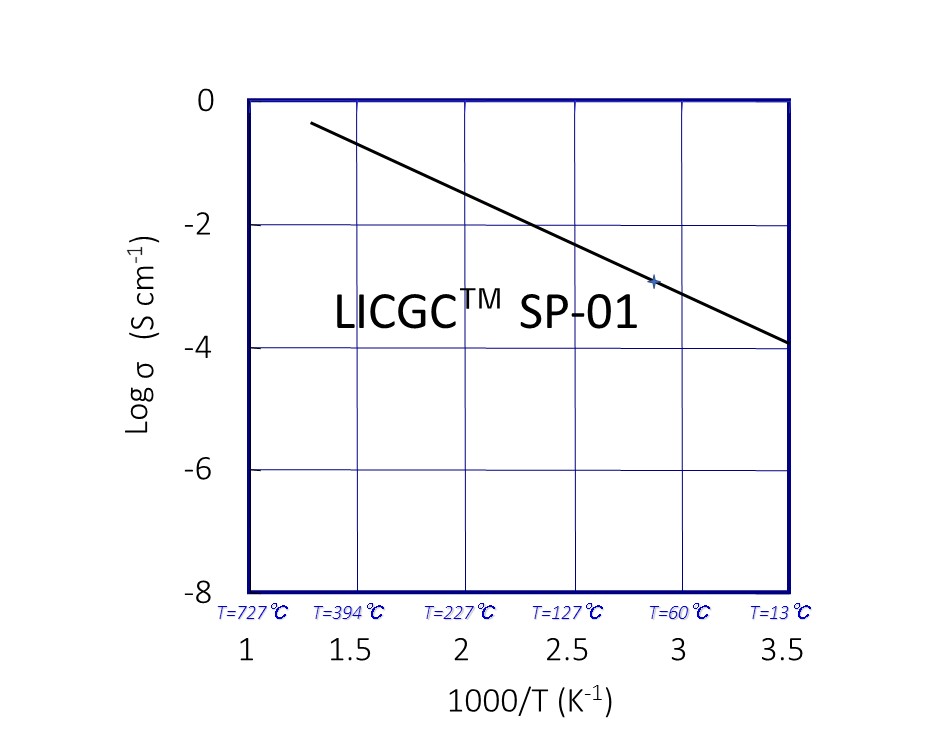

Figure 1. Ionic conductivity performance as compared to LICGCTMAG-01
*Above-mentioned properties are reference values and are not guaranteed.
Properties are subject to change as our products are developed.*Above-mentioned contents are subject to change as our products are developed.
Composition
Li2O-Al2O3-SiO2-P2O5-TiO2系
Crystalline Phase
Li1+x+yAlxTi2-xSiyP3-yO12
(Li replaceable NASICON type)
LICGCTMSP-01 Plate Dimensions
□1inch×0.02mmt
□1inch×0.045mmt
□1inch×0.15mmt
□50mm×0.02mmt
□50mm×0.045mmt
□50mm×0.09mmt
□50mm×0.18mmt
Φ19mm×0.045mmt
*Please contact us to inquire about other sizes and shapes.
*Above-mentioned contents are subject to change as our products are developed.
Application example
-
Measuring equipment -
Mobile Related -
Lithium-ion Battery Related -
Automotive Related -
Aviation Related
